Building Event-Driven ETL Pipelines with AWS Glue and EventBridge

In the world of data engineering, building efficient, real-time ETL pipelines is a key challenge. AWS offers a robust suite of services that make it easier to automate and manage data workflows, particularly with the combination of AWS Glue and Amazon EventBridge. This blog will guide you through the process of integrating these two services to create an event-driven ETL pipeline. By using EventBridge to trigger Glue jobs based on file uploads to S3, you can streamline your data processing workflows and ensure that data is processed in real-time as it becomes available. Whether you're handling batch jobs or real-time data streams, this integration offers a powerful, scalable solution to automate data pipelines and improve operational efficiency.

What is Event-Driven ETL?

Event-driven ETL pipelines trigger extract, transform, and load operations in response to specific events, such as a file upload to an S3 bucket or a database update. These pipelines are ideal for real-time or near-real-time data processing.

How EventBridge and Glue Work Together

Amazon EventBridge acts as the central event hub, routing events from various sources to Glue jobs. EventBridge's ability to ingest events from AWS services and custom sources makes it a powerful tool for orchestrating Glue-based ETL workflows.

Key Workflow:

• Event Source: Events (e.g., an S3 PUT or a database change) are captured.

• EventBridge Rule: A rule is defined in EventBridge to filter specific events and invoke Glue jobs.

• AWS Glue Job: The triggered Glue job processes the data and saves the transformed output to a target (e.g., Redshift or S3).

Step-by-Step Integration

Step 1: Set Up the S3 Bucket

• Create an S3 bucket to store incoming data.

• After creating the bucket go to the Properties section and then turn on Amazon Eventbridge notifications

Step 2: Set Up an IAM Role for the Glue Job

Head to the IAM console and create a new role. Assign it the necessary permissions, such as AmazonS3FullAccess for accessing S3 buckets and AWSGlueServiceRole to enable Glue to execute the job seamlessly.

Step 3: Create a Glue Job

Open the Glue Console and create a new job tailored to your needs. For this example, I’ve set up a basic job that converts CSV files to Parquet format, as the main goal here is to demonstrate the integration rather than focus on complex transformations.

Step 4: Set Up an EventBridge Rule

1. Navigate to the EventBridge Console:‍
   1. Open the EventBridge console and go to the "Rules" section.

2. Create a New Rule:
   1. Click on "Create Rule" and provide the following details:

3. Name: Assign a meaningful name to the rule. ‍
   1. Rule Type: Choose "Rule with an event pattern."

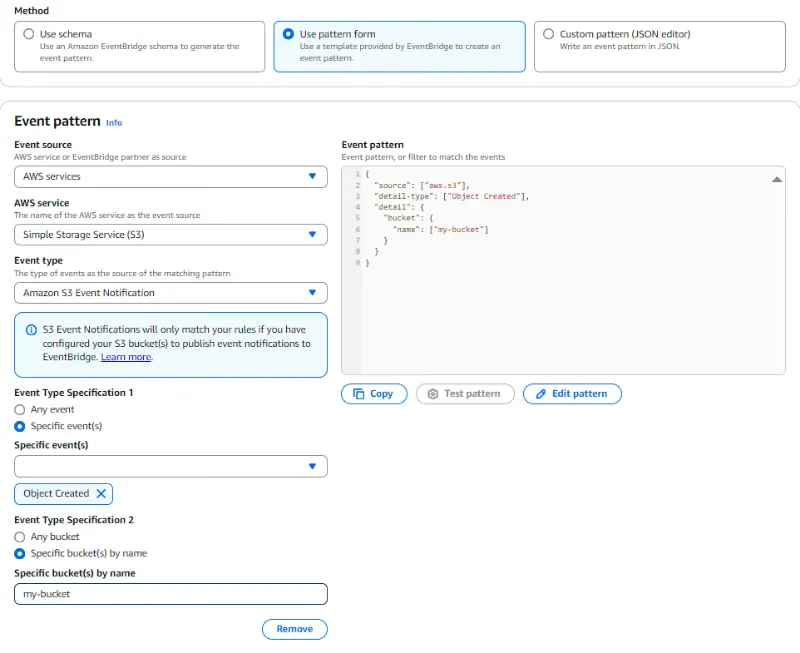

4. Define the Event Pattern: You can define the event pattern in two ways:

• ‍Method 1: Use Pattern Form:
  • ‍Event Source: AWS Services ‍
  • AWS Service: Simple Storage Service (S3) ‍
  • Event Type: Amazon S3 event notification ‍
  • Event Specification 1: Capture events like "Object Created." ‍
  • Event Specification 2: Specify the target bucket name.

• Method 2: Use JSON: Directly input the event pattern as JSON for more customization.

With this configuration, the rule will trigger whenever an object is created in the specified bucket.

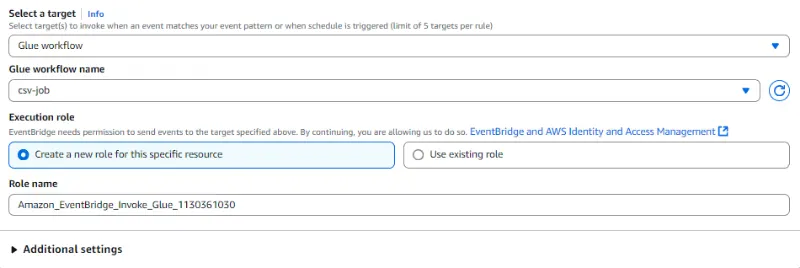

5. Select Glue Workflow as the Target:
   Choose Glue Workflow as the target for the rule.

6. Allow EventBridge to Create the IAM Role:
   Let EventBridge automatically create the required IAM role for the integration, or select an existing role if you have one already set up.

7. Additional Settings: ‍
   • ‍Maximum Age for Unprocessed Events: Set the maximum time an event should remain unprocessed before being discarded.‍
   • Retry Attempts: Specify the number of retry attempts if the event processing fails. ‍
   • Dead-Letter Queue (DLQ): It’s recommended to configure a DLQ for production use to store events that couldn’t be processed. Start with 5 retry attempts.

Step 5: Create a Glue Workflow

1. Navigate to the Glue Console:

• Go to the Glue console and select Workflows from the sidebar.

2. Add a New Workflow:

• Click on Add workflow and provide a meaningful name and description for your workflow.

3. Orchestrate the Workflow:

• After the workflow is created, go to the Workflows section to orchestrate the tasks.

4. Add a Trigger:

• Click on Action and select Add Trigger. Then, click on Add New.

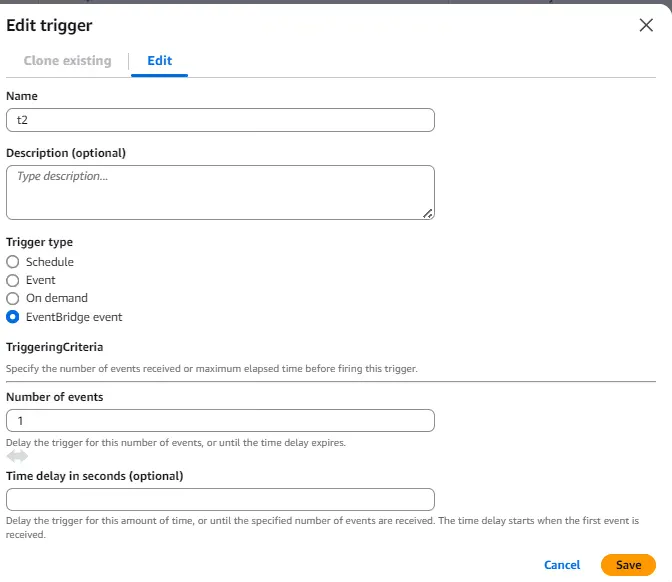

5. Configure the Trigger:

• Name: Provide a name for the trigger.

• Event Type: Choose EventBridge event as the event type.

• Number of Events to Wait For: Specify how many events you want to wait for before triggering the workflow.

• Time Delay: Set the delay time (the default is 900 seconds).

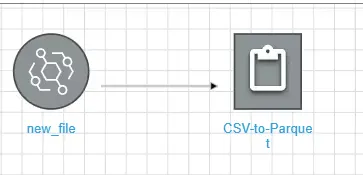

6. Add Node: Click on Add Node in the workflow graph and then choose the Glue job that we created in most cases we would be having a glue crawler as well

Step 6: Test the Integration by Uploading a File to S3

Once you've completed all the previous steps, go to your S3 bucket and upload a sample file. This will trigger an event that matches the EventBridge rule, which will then invoke the Glue job. You can monitor the status of the Glue job in the Glue Workflow panel to ensure everything runs smoothly.

Best Practices

• Optimize Glue Jobs: Use job bookmarks to ensure idempotent processing and avoid reprocessing the same data.

• Secure Data: Use IAM roles and bucket policies to restrict access to sensitive data.

• Monitor Events: Use CloudWatch for monitoring EventBridge rules and Glue job executions.

• Error Handling: Implement retries and exception handling in Glue scripts to manage processing failures.

Benefits of Event-Driven ETL

• Real-Time Processing: React to events as they occur, reducing data latency.

• Scalability: Glue auto-scales based on workload, ensuring efficient resource utilization.

• Serverless and Cost-Effective: Both EventBridge and Glue are serverless, eliminating infrastructure management.

Conclusion

Integrating AWS Glue with EventBridge enables the creation of dynamic, real-time ETL pipelines. This combination provides scalability, simplicity, and efficiency, making it an excellent choice for modern data engineering workloads. Whether you're processing real-time log files or performing database updates, this architecture ensures that your data pipelines are always ready to handle new events.
